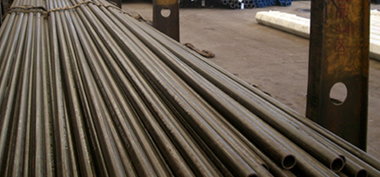

Boiler tubes is tubes used for boiler systems, like boilers for civil use
Boiler Tubes: Boiler tubes is tubes used for boiler systems, like boilers for civil use in life, general industrial boilers, locomotive boilers and thermal power boiler. According to different steam pressure, thermal power boilers are divided to low, medium, high pressure, high pressure, sub-critical pressure, supercritical pressure boilers, ultra-supercritical units. Production standards and materials for boilers tubes: BS3059 Steel boiler and superheater tubes
BS3605 Austenitic stainless steel pipes and tubes for pressure purposes
A192/A192M-91(1996) Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
A209 A209/A209M-98 Specification for Seamless Carbon-Molybdenum Alloy-Steel Boiler and Super heater Tubes
A210 A210/A210M-96 Specification for Seamless Medium-Carbon Steel Boiler and Superheater Tubes
A250 A250/A250M-95 Specification for Electric-Resistance-Welded Ferritic Alloy-Steel Boiler and Superheater Tubes
ASTM B622 Seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes
A213 A213/A213M-99a Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
A249 A249/A249M-98e1 Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
low carbon steel tubes for heat exchanger and boilers
ASTM A179, DIN17175, BS3602, NFA A49215, JIS G 3461, A192, A210 Grade A1,A210 Grade C, ASTM A556, A214, DIN17177, BS 3059, NFA A49242, JIS G3461, A226, GB3087, GB5310, ASME SA106, ASME SA333, ASME SA335, DIN17175, EN10216-2

Alloy steel tubes for heat exchanger and boilers alloy steel tubes used for boiler use
ASTM A209, T1,T1A, T1b
ASTM A199,T4,T5,T9,T11,T21,T22,T91
ASTM A213,T2, T5,T5b,T5c, T9, T11, T12, T17,T21,T22,T91,T92
ASTM A334, Grade1,3,6,7,8,91,112. DIN17173, BS3603, JIS G3464
BS3606, JIS G3462
DIN17176, BS3604
ASME SA 333: SA333 Grade1, SA333 Grade 6
ASME SA335: SA335 P11, SA335 P12, SA335 P22, SA335 P5, SA335 P1, SA335 P9,
DIN 17175: St45.8, 15Mo3, 16Mo3, 13CrMo44, 10CrMo910, 14MoV6-3, X10CrMoVNb9-1 = T91 / P91
JIS G3461: STB 340, STB 410
EN 10216-1: P195 TR1, P235 TR2
ASME SA 106: SA 106B, SA 106C10, 20, 20G, 20MnG, 25MnG, 15CrMoG, 12Cr2MoG, 12Cr1MoVG, 10Cr9Mo1VNb, SA106B, SA106C, SA210A1, SA210C, SA333 I, SA333 VI, SA335 P5, SA335 P11, SA335 P12, SA335P22, SA335 P91, SA335 P92, 15NiCuMoNb5-6-4, 1Cr18Ni9 (TP304H, X6CrNi18-10), 1Cr19Ni11Nb (TP347H, X7CrNiNb18-10), TP321H, TP347HFG, CODE CASE 2328-1 (S30432), TP310HCbN, 20G, 12CrMoG, 15CrMoG, 12Cr1MoVG, 25MnG, 15MoG, 12Cr2MoGMechanical properties

Steel grade

 Tensile strength (Mpa) Yield strength (Mpa) Elongation (%)Impact energy(J)HardnessStandard

Rockwell Hardness

Brinell Hardness

WT
<5.1mm
WT
≥5.1mm
<15mm≥15mm
St35.8360-48023522525---DIN17175
Sr45.8410-53025524521---
15Mo3450-60027022---
13CrMo44440-59029022---
10CrMo910450-60028020---
14MoV63460-6103202055 -
12Cr1MoV470-6402552452141--


<15mm

≥15mm


SA192≥32518035-77HRB137HBASMESA192
SA106-B≥415240 ---ASMESA106
SA106-C≥485275---
SA556-C2≥480280-- ASMESA556
SA210-A1≥415255-79HRB(143HB)ASMESA210
SA210-C≥485275-89HRB(179HB)
SA209-T1a≥415220-81HRB153HBASMESA209
SA213-T12≥415205-163HB(85HRB)ASMESA213
SA213-T22≥415205-163HB(85HRB)

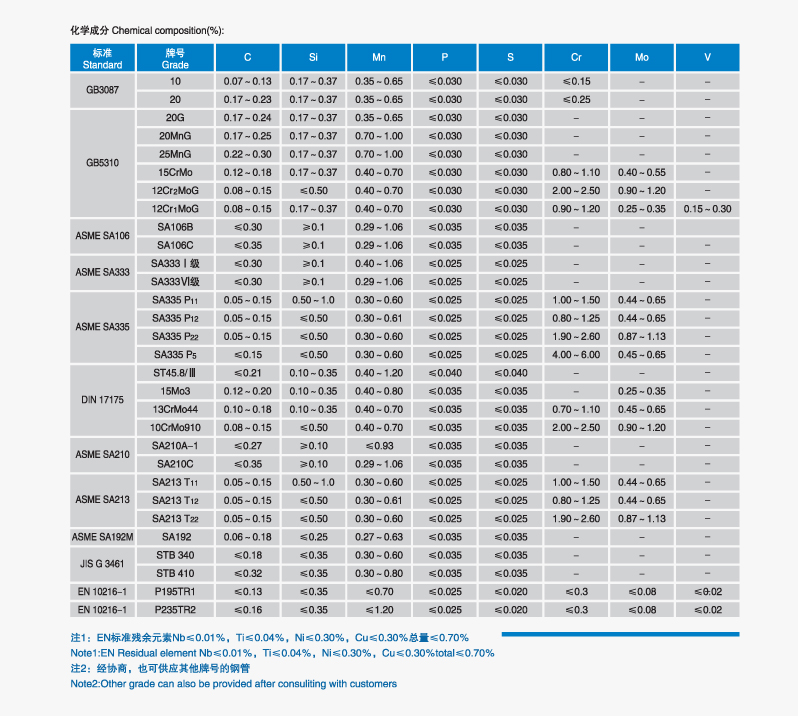

Chemical composition
Download: chemical compositions table
